Cape
Town Station
Kommetjie
We operate in accordance with
ISO/IEC Guide
17025.
We specialise in
[Measurement
and Control]
Solutions to a wide range of
environmental applications.
[Installation]
Worldwide
installation of instrumentation.
[Import/Distribution]
Meteorological
equipment and turnkey
weather stations imported directly
from various countries.
[Testing
and Certification]
(Calibration)
in accordance with ISO/IEC
Guide 17025.
[Sales/Service/Repairs]
RM
Young, Campbell Scientific, Paroscientific
and Remtech inc. meteorological

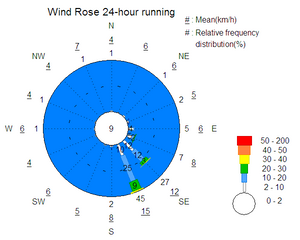

equipment and spares. WeatherQuery graphical
data display.
[Manufacturing
&
Development]
3 and 9-meter tripod sensor mounts,
ambient temperature sensors, RF telemetric data logger,
Log45 data logger support software.
[Customer
support
&
After
sales service]
Knowledge base
on a wide range of environmental measurement and control applications.
Copyright
© Inteltronics Instrumentation. All rights reserved.
Supplier
of research / industrial grade meteorological
instrumentation.
SANAS
Accredited.
Inteltronics
Photo Gallery
Exhibitions
South
African Weather
X-Ray and Gamma Ray
Detectors
X-Ray
Tubes
Spectrometers
Delta Ohm
Waste Management
Contact information
For friendly service or advice contact
Felie or Charl le Roux
[Cell]
+27(0)82 445
2531 (Felie)
[Cell]
+27(0)83 266
2246 (Charl)
[E-mail]
itronics@icon.co.za
[Address]
Uitsig
De Kroon
Brits
South Africa
[Postal Address]
PO Box 181
Brits
0250
South Africa
Campbell Scientific CR10X data logger
Specifications
Program
execution rate
Analog
inputs
Annalog
outputs
Resistance
measurements
Period
averaging
Pulse
counters
Digital
I/O ports
SDI-12
interface standard
Program is synchronized with real-time up to
64 Hz. One measurement with data transfer is possible at this rate without
interruption.
6
differential / 12 single ended, individually conf.
3
switched, active only during measurement.
Ratiometric
bridge/Dual polarity excitation/Conductivity.
Any of
the 12 single ended analog inputs.
2
channels.
8 ports,
selectable as binary input/control outputs
Digital
I/O ports support SDI-12 asynchronous communication; up to 10 SDI-12
sensors can be connected to each port.
More info
for
specification sheets or product range
just click (or see Data Loggers)
Description
A stable
instrumentation platform. Easy to transport and assemble (Maximum pipe
length = 2m) Quick access to instruments by tilting the mast. The vertical
section and legs are reinforced with stainless steel cables for stability
in high winds. Also with ground spike and wiring.
Model
MA 9 - 9 meter tilting tripod sensor mount and grounding kit.
Specification
Height
Tube
material
Galvanizing
Total
shipping weight
Total
shipping dimensions
Concrete
slab (if required)
9 meters
Galvanized
steel
Hot
dipped to ISO 1461
80 kg
2100 x
300 x 300 mm
6 x 6
meters
or
3
1x1
meters
More info
for
specification sheets or product range
just click (or see Sensor Mounts)
Description
The
model 41003 Gill Multi-Plate Radiation Shield protects temperature and
relative humidity sensors from error-producing solar radiation and
precipitation. The shield relies on a combination of plate geometry,
material and natural ventilation to provide effective shielding.
R.M.Young Model
41003 Gill Multi-Plate Radiation Shield.
Specification
Sensor
types
Radiation
error.
Construction
Dimensions
Accommodates
temperature and humidity sensors up to 26 mm diameter.
@ 1080
W/m2 intensity - dependent on wind speed
0.4 deg
C RMS @ 3 m/s
0.7 deg
C RMS @ 2 m/s
1.5 deg
C RMS @ 1 m/s
UV
stabilized white thermoplastic plates.
13 cm D
x 26 cm H
More info
for
specification sheets or product range
just click (or see Temperature & Humidity)
Description
The
model 05103 Wind Monitor is a high performance, rugged wind sensor. The
instrument is made of UV stabilized plastics and anodized stainless steel
and aluminium fittings. Precision grade ball bearings are used. The
wind sensor is a four blade helicoid propeller. The wind direction sensor
is a rugged yet lightweight vane with a sufficiently low aspect ratio to
assure good fidelity in fluctuating wind conditions.
R.M.Young Model
05103 Wind Monitor.
Specification
Range
Accuracy
Threshold
Dynamic
Response
Signal
Output
Power
requirement
Dimensions
Wind
speed : 0 - 60 m/s (216 kph) - Gust survival : 100 m/s
(360 kph)
Azimuth
: 360 deg mechanical, 355 deg electrical (5 deg open)
Wind
speed : +-0.3 m/s - Wind direction :
+- 3 deg
Propeller
: 1m/s - Vane 1.1 m/s
Propeller
distance constant (63% recovery) 2.7m
Vane
delay distance (50% recovery) 1.3m
Damping
ratio : 0.3 - damped natural wavelength :
7.4m
- undamped natural wavelength : 7.2m
Wind
speed : magnetically induced AC voltage, 3 pulses per revolution.
1800 rpm
(90Hz) = 8.8 m/s
Azimuth
: analog DC voltage from conductive plastic potentiometer
- resistance 0 K
Ohm, linearity 0.25%.
Potentiometer
excitation : 15 VDC maximum.
37 cm
(height) x 55cm (length) - propeller 18cm diameter
-
mounting : 34 mm diameter.
for
specification sheets or product range
just click (or see Wind Sensors)
Description
The
model 41382 Relative humidity / temperature probe combines a high
accuracy, capacitance type humidity sensor and 1000 ohm Platinum RTD
temperature sensor in one probe. The probe is easily installed in Young
multi-plate and aspirated shields. This probe offers a choice of 0-1 VDC or
4-20 mA outputs T and RH.
R.M.Young Model 41382 Relative humidity/temperature sensor.
Specification
Power
required
V option
:10-28 VDC
5 mA
L option
: 10-28 VDC
20 mA
Calibrated
measuring range
Time
constant
Accuracy
at 0 deg C
Sensor
type
Output
signal
-50 to
50 deg C
42
seconds with model 43408 aspirated shield
+- 0.3
deg C
1000 Ohm
Platinum RTD
0-1 VDC
(V option)
4-20
mA(L option)
More info
for
specification sheets or product range
just click (or see Temperature & Humidity)
Description
The
model 41382 Relative humidity / temperature probe combines a high
accuracy, capacitance type humidity sensor and 1000 ohm Platinum RTD
temperature sensor in one probe. The probe is easily installed in Young
multi-plate and aspirated shields. This probe offers a choice of 0-1 VDC or
4-20 mA outputs T and RH.
R.M.Young Model
61202 Barometric Pressure Sensor with 61002 Pressure Port.
Specification
Pressure
Digital
resolution
Operating
temperature
Accuracy
Update
rate
Serial
output
Analog
Outputs
Analog
Resolution
Power
Case
600 to
1100 hPa standard range
0.1 hPa
-50 -
+60 deg C
+-0.3
hPa at 20 deg C and 1 hPa at -50 to +60 deg C
2
seconds
Full
duplex RS-232/
Half duplex
RS-485/9600 baud/Polled or continuous/ASCII
text output.
4.00 to
20.00 mA, standard range 600 to 1100 hPa, other range settable
Depends
on range / 0.1 hPa typical
7 - 30
VDC at 30 mA
Fiber-reinforced
Thermoplastic
More info
for
specification sheets or product range
just click (or see Barometric Pressure)
Description
The
model 70092 Solar Radiation Sensor measure global solar radiation for
agricultural, meteorological and hydrological applications. The 70092
features a silicon photovoltaic detector mounted in a fully
cosine-corrected head.
R.M.Young Model
70092 Solar Radiation Sensor.
Specification
Sensor
type
Measurement
range
Sensitivity
.
Linearity
.
Stability
Response
time
Signal
Temperature
dependence
Cosine
Correction
Operating
temperature
High
stability silicon photovoltaic detector (blue enhanced)
400 -
1100 nanometers
Typically
80 µA per 1000 W m-2
1% max
up to 3000 W m2
<+-2%
per year
10 µS
0-8 mV =
0-1000Wm2 typical across 100 Ohm load
0.15%
per deg C maximum
Cosine
corrected up to 80 deg angle of incidence.
-20 to
+65 deg C
More info
for
specification sheets or product range
just click (or see Solar Radiation)
Description
The
model 52202/ 52203 Tipping Bucket Rain Gauge meets the specifications of
the World Meteorological Organization. Extensive use of molded
thermoplastic compounds gives maximum performance and resistance to
corrosion.
R.M.Young Model
52203 Tipping Bucket Rain Gauge.
Specification
Catchment
area.
Resolution
Accuracy
Output
Contact
rating
Operating
temp
Power
200 cm2
0.1 mm
per tip
2 % up
to 25mm / h
Magnetic
reed switch, normally open
24V AC /
DC 500 mA Max
-20 deg
C to 50 deg C (heated)
18 Watts
at 24 VAC for heated model only.
(model 52202 is heated for colder
climates)
More info
for
specification sheets or product range
just click (or see Precipitation)
Description
LoggerNet
3.1, our full-featured datalogger
support software,
facilitates programming, communications, and data retrieval
between Campbell Scientific dataloggers and a PC. This 32-bit
software supports all contemporary dataloggers (including the
CR1000), all datalogger operating systems (e.g., mixed-array,
table data, PAKBUS®), and many retired dataloggers (e.g., CR500,
CR10, 21X).
Features
Connection to a
datalogger either by serial cable, RF link, cell phone modem, ethernet.
Datalogger
programming, depending on
the datalogger using either Edlog or CRBasic.
On demand or
scheduled
data downloading.
Setting
ports/flags i.e. open
flood gates, turn fans off/on etc.
Graphically displays data.
Export data to
third-party analysis packages.
More info
for
specification sheets or product range
just click (or see Software)
Description
Graphical
data display.
24-hour data from a Campbell Scientific cr10 and cr200 Screen designed with
WeatherQuery 4
More info
For
examples just click.
